Technical Statement
Product Description

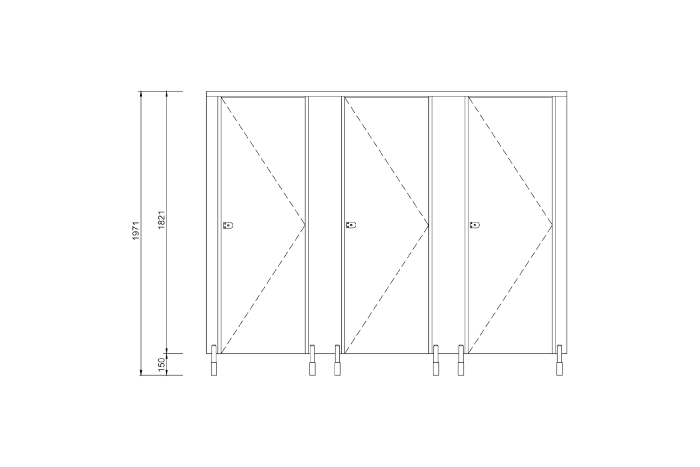

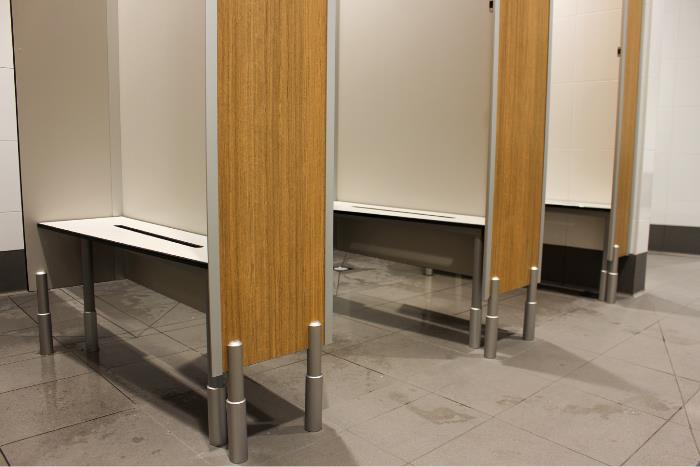

Our Classic Range offers a more traditional toilet cubicle solution, ideal for a wide variety of commercial and public bathroom solutions. With 1815mm high panels, the cubicles are designed to finish neatly above the floor level and below the ceiling, delivering a clean, practical and timeless appearance.

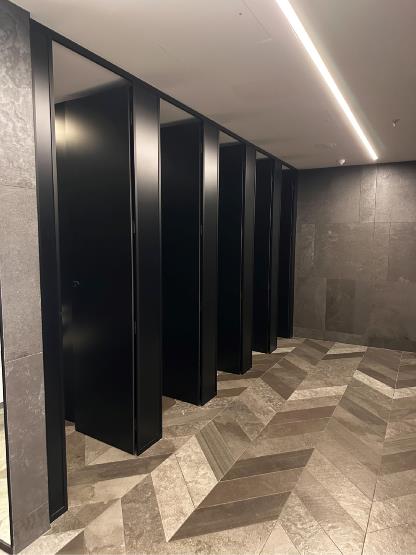

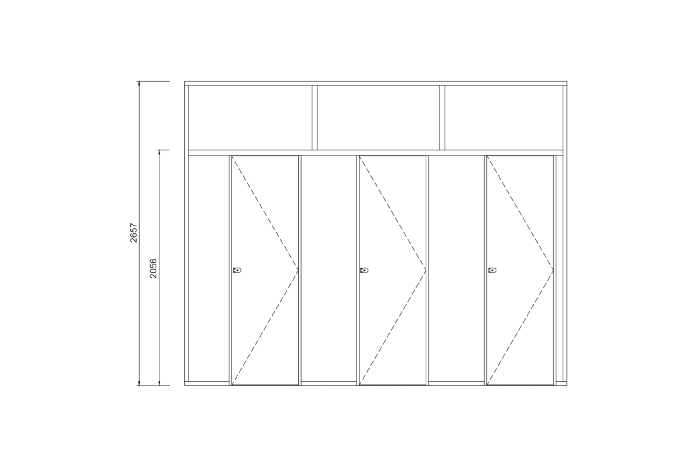

HighTop is a full height toilet partition designed for environments where maximum privacy is preferred. Panels extend from floor to ceiling, creating a fully enclosed and completely private cubicle.

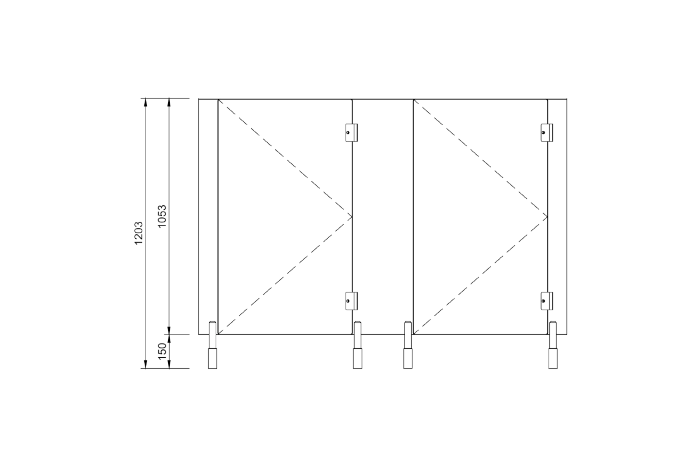

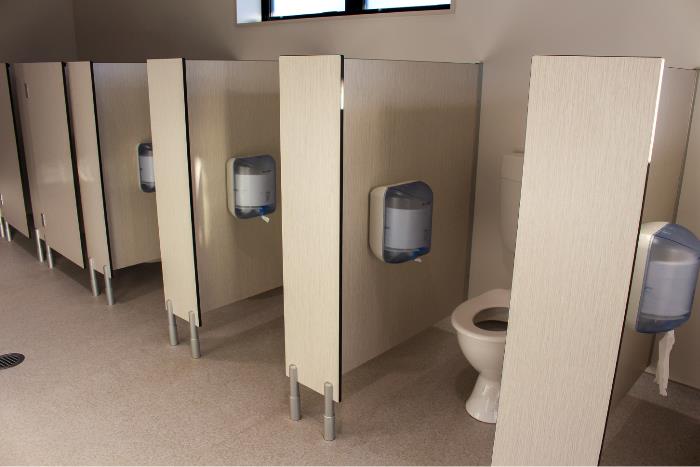

Our PeeWee range is a dedicated cubicle range designed specifically to support new entrants and pre-school children.
Scope of use
This system is partitioning for shower and toilet cubicles.
New Zealand Building Code (NZBC)
The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:
- Clause B2 Durability: Performance B2.3.1, B2.3.1(c)
B2 Durability: Performance B2.3.1 (b) for 15 years when Fabrication guidelines included in the Laminex™ Panels for Partitions Technical Data Sheet are followed.
Laminex Technical documents
- Clause E3 Internal moisture: Performance E3.3.4
Laminex® Compact Laminate has non-porous impermeable surface.Laminex compact laminate BPIR
- Clause F2 Hazardous building materials: Performance F2.3.1
Laminex Compact Laminate VOC Certificate
- Clause G1 Personal hygiene: Performance G1.3.1, G1.3.2, G1.3.2(a), G1.3.2(b), G1.3.2(c), G1.3.2(d), G1.3.2(e), G1.3.2(f), G1.3.3, G1.3.4
Laminex® Compact Laminate has non-porous impermeable surface.Laminex® Compact Laminate has Laminex™ Protec+®, an antimicrobial surface technology that prevents growth of bacteria and inhibits fungus on decorative surfaces. Laminex® Protec+ has been independently tested in accordance with a number of leading standards, including ISO 22196:2011, JIS Z 2801 and AS™ G21, which measure antibacterial activity and fungal resistance
Evidence
The product meets the requirements set out in the following documents, or relevant parts of cited standards within the documents:
Freeform meets the NZ Building Code in the following areas; B2, E3, F2 and G1. Refer to the necessary supporting information.
Supporting evidence
The product has and can make available the following additional evidence to support the above statements:
Use in Service History
In service history - used in commercial washrooms for education, commercial interiors, stadiums and high use, durable environments across NZ.
Product Criteria
Design requirements
Classic Range - Our Classic Range offers a more traditional toilet cubicle solution, ideal for a wide variety of commercial and public bathroom solutions. With 1815mm high panels, the cubicles are designed to finish neatly above the floor level and below the ceiling, delivering a clean, practical and timeless appearance.
Hightop Range - High Top is a full height toilet partition designed for environments where maximum privacy is preferred. Panels extend from floor to ceiling, creating a fully enclosed and completely private cubicle.
PeeWee Range - We deliver a dedicated cubicle range designed specifically to support new entrants and pre-school children.
Maintenance requirements
PDF download for our MAINTENANCE MANUAL
Warrantees
10 Years on all Compact Laminate.
2 Years on all Melamine.
2 Years on Hardware & Workman Ship
Environmental
Refer to EPD for Laminex.
Building Product Information Requirements
Manufacturer
Legal Trading Name:
Laminex New Zealand
Contact Number/s:
+64 800 306606
0800 306606
Importer
Legal Trading Name:
Freeform Laminates Ltd
Business Email:
pricing@freeform.co.nz
Contact Number/s:
03 3431515
03 3431515
Product Identifier
ALL LAMINEX BOARD PRODUCTS
Warnings
This product has no warnings associated with it.
